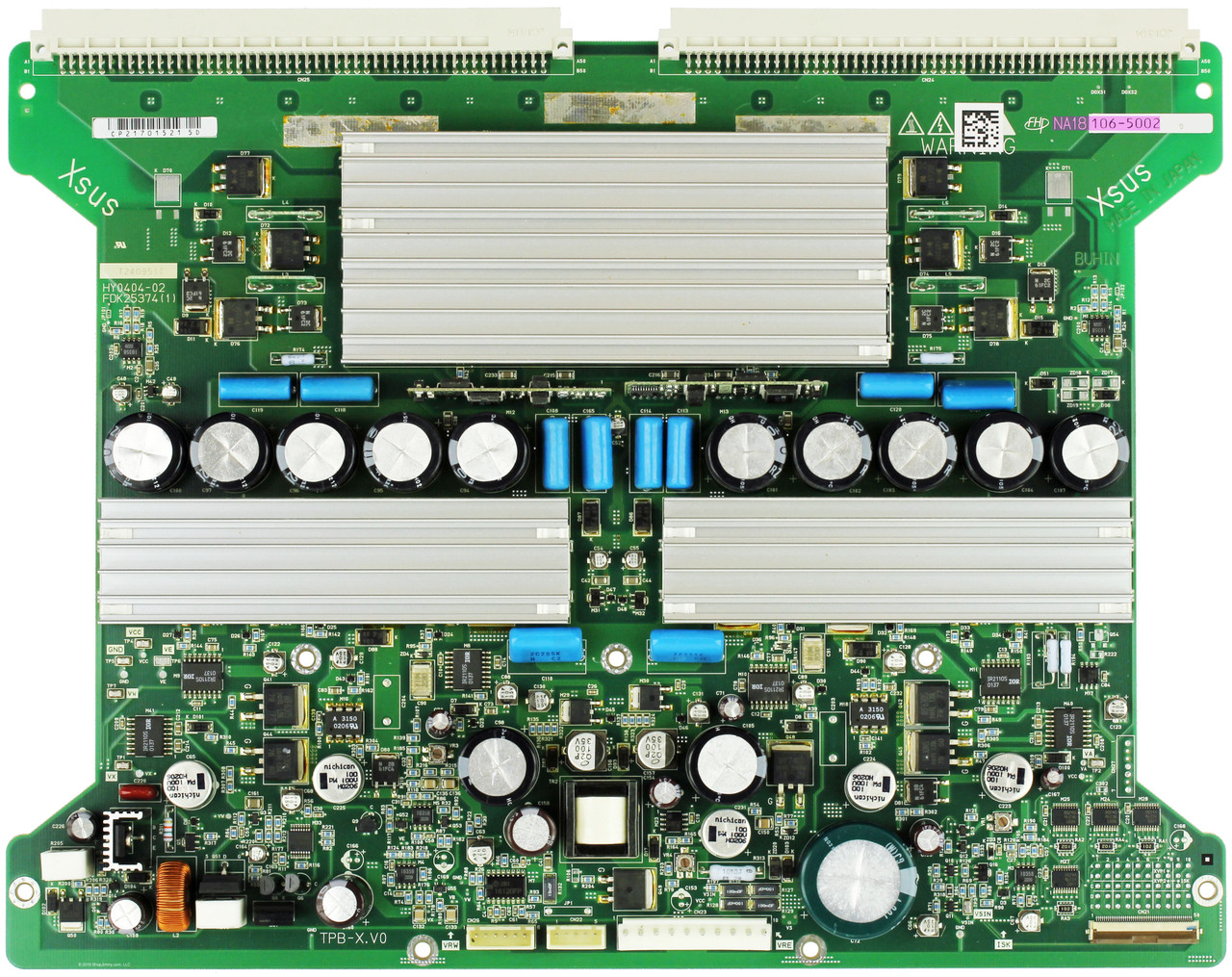

Hitachi FPF16R-XSS5002 (NA18106-5002) X-Main Board

SKU:
sj-FPF16R-XSS5002
Was
$60.28
(You save $26.45)
$33.83
Was
$60.28
(You save $26.45)
$33.83
180-Day Warranty
Ships same business day if ordered before 4pm CT!
We highly recommend matching your part number. Learn more
NA18106-5002


Known Models

BrandModelsVersions
HITACHI42HDT20
42HDT20M
CMP4121HDU-511
CMP4121HDU-512
Part Number:
FPF16R-XSS5002
Warranty:
180-Day Warranty
Board Number:
NA18106-5002| HY0404 FDK25235(2)| HY0404-02 FDK25374(1)
Harmonized Code:
8529.90.06.00
Manufacturer Part Number 1:
Hitachi FPF16R-XSS5002
Notes:
ShopJimmy recommends ordering by part number whenever possible. Often times there are TV models that use more than one set of parts and/or panels.
Part Type:
X-Sustain
TV Panel Manufacturer:
Fujitsu Hitachi
TV Sizes:
42
Models:
42HDT20
Models:
42HDT20M
Models:
CMP4121HDU-511
Models:
CMP4121HDU-512
Panel Number:
FPF42C128128UB-51
Brands:
hitachi

Videos

What is an X-sustain board?

The X-sustain board is found in plasma TVs and drives all of the X-axis video signals to your TV screen and also discharges the video signal.

Which symptoms does an X-sustain board fix in a TV?

•  If your picture looks like images are blurring together or overlapping, then the Xsustain board could be bad.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace an X-sustain board?

While replacing the X-sustain board is pretty easy, you’ll want to be mindful not to tear the flat ribbon cables when connecting/disconnecting the board.
