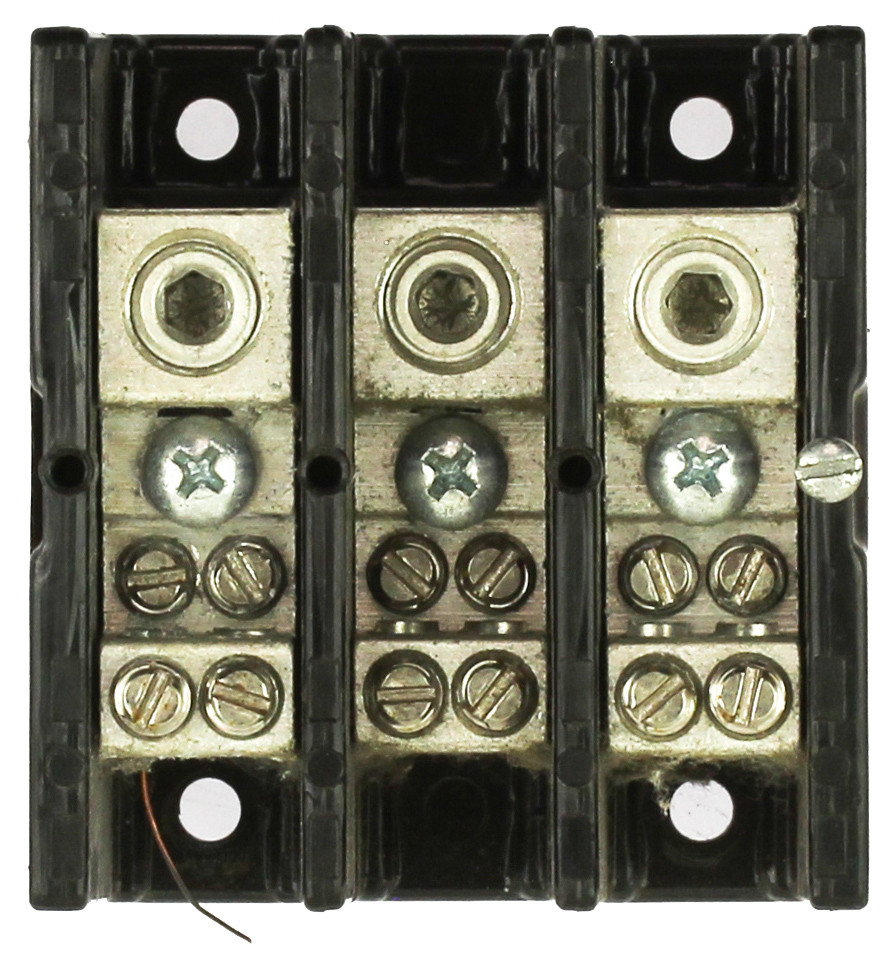

Marathon Special Products Power Distribution Blocks, 142 Series
Number of Poles 3
AC Voltage 600 VAC
Current Rating 175 A
Number of Inputs per Pole 1
Number of Outputs per Pole 4
Electrical Connection Box Lug/Box Lug
Mounting Panel Mount
Line Side Wire Range 2/0-14 AWG
Output Wire Range 4-14 AWG
Introducing the Marathon Special Products 1423570 2 Power Distribution Block from the renowned 142 Series, available exclusively at ShopJimmy.com. This robust power distribution block is designed for high-performance electrical systems, offering reliability and efficiency for your power distribution needs.
Specifications:
- Number of Poles: 3
- AC Voltage: 600 VAC
- Current Rating: 175 A
- Number of Inputs per Pole: 1
- Number of Outputs per Pole: 4
- Electrical Connection: Box Lug/Box Lug
- Mounting: Panel Mount
- Line Side Wire Range: 2/0-14 AWG
- Output Wire Range: 4-14 AWG
Crafted by Marathon, this power distribution block exemplifies quality and durability, ensuring your electrical systems are in capable hands. Its panel mount design allows for easy installation, making it an ideal choice for both commercial and industrial applications. Trust ShopJimmy.com to deliver exceptional products like the Marathon Special Products 1423570 2 Power Distribution Block that meet your precise specifications.
Number of Poles 3
AC Voltage 600 VAC
Current Rating 175 A
Number of Inputs per Pole 1
Number of Outputs per Pole 4
Electrical Connection Box Lug/Box Lug
Mounting Panel Mount
Line Side Wire Range 2/0-14 AWG
Output Wire Range 4-14 AWG
Introducing the Marathon Special Products 1423570 2 Power Distribution Block from the renowned 142 Series, available exclusively at ShopJimmy.com. This robust power distribution block is designed for high-performance electrical systems, offering reliability and efficiency for your power distribution needs.
Specifications:
- Number of Poles: 3
- AC Voltage: 600 VAC
- Current Rating: 175 A
- Number of Inputs per Pole: 1
- Number of Outputs per Pole: 4
- Electrical Connection: Box Lug/Box Lug
- Mounting: Panel Mount
- Line Side Wire Range: 2/0-14 AWG
- Output Wire Range: 4-14 AWG
Crafted by Marathon, this power distribution block exemplifies quality and durability, ensuring your electrical systems are in capable hands. Its panel mount design allows for easy installation, making it an ideal choice for both commercial and industrial applications. Trust ShopJimmy.com to deliver exceptional products like the Marathon Special Products 1423570 2 Power Distribution Block that meet your precise specifications.
