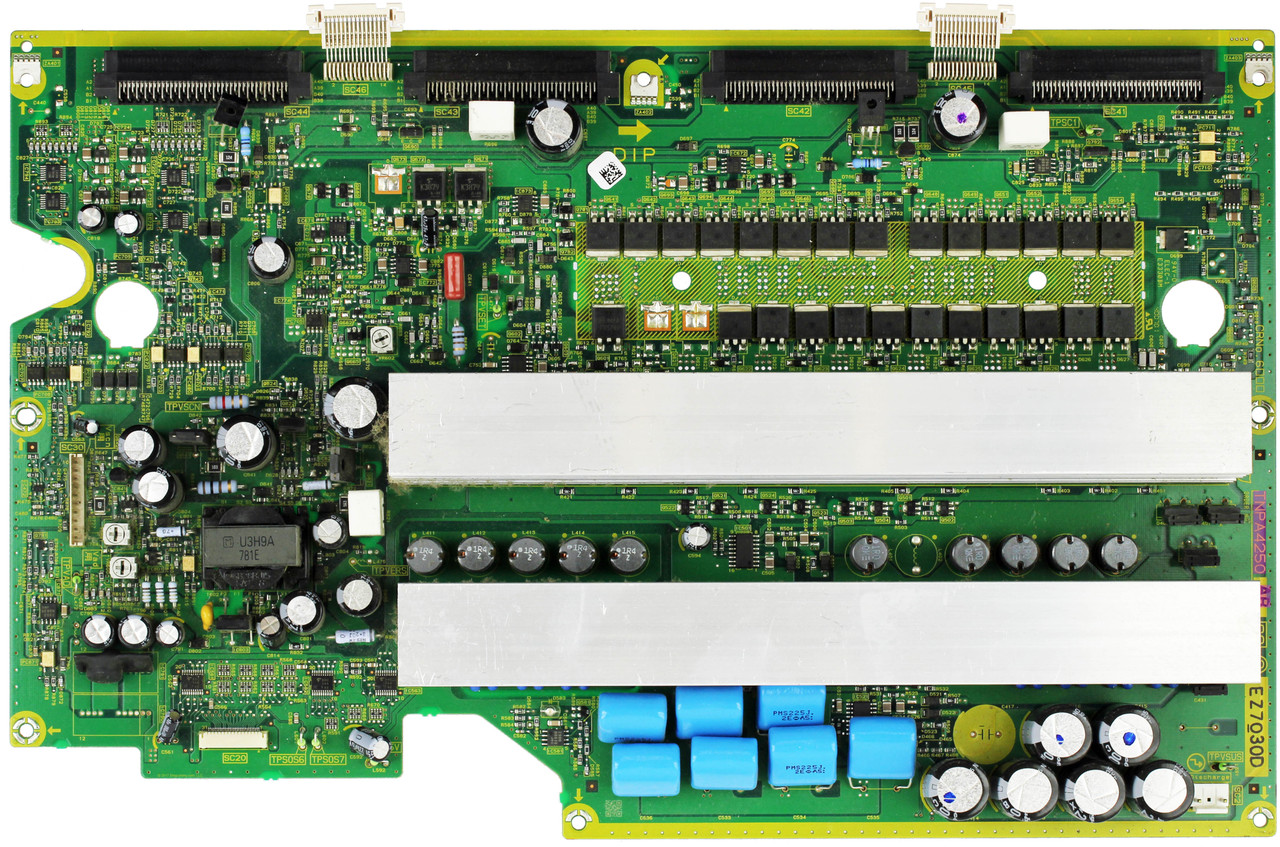

Panasonic TXNSC1NZTU (TNPA4250AB) SC Board

SKU:
sj-TXNSC1NZTU
$118.70
(You save $26.71)
$91.99
✔
✔ 180-Day Warranty
TNPA4250AB


Known Models

BrandModelsVersions
PANASONICTH-42PZ700UA
TH-42PZ77U
We recommend matching the part number on your TV part with our part number(s) listed on this page. While matching your TV model number is a great start, there are models that use more than one set of parts/panels. Confirming that your part number matches with the part you’re ordering is the best way to ensure compatibility and a successful repair!
Part Number:
TXNSC1NZTU
Warranty:
180-Day Warranty
Board Number:
TNPA4250AB
Harmonized Code:
8529.90.06.00
Manufacturer Part Number 1:
Panasonic TXNSC1NZTU
Notes:
ShopJimmy recommends ordering by part number whenever possible. Often times there are TV models that use more than one set of parts and/or panels.
Part Type:
Y-Sustain
Part Usage:
Plasma
TV Panel Manufacturer:
Panasonic
TV Sizes:
42
Models:
TH-42PZ700UA
Models:
TH-42PZ77U
Brands:
panasonic
Panel Number:
MC106F16F10A

What is an Y-sustain board?

Y-sustain boards are found in plasma TVs and drive all of the Y-axis video signals coming from the logic board to your TV screen.

Which symptoms does an Y-sustain board fix in a TV?

•  If your TV has has no video, then the Y-sustain could be bad.

•  If your TV doesn’t turn on, then the Y-sustain could be bad.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace an Y-sustain board?

While replacing the Y-sustain board is pretty easy, you’ll want to be mindful not to tear the flat ribbon cables when connecting/disconnecting the board.
