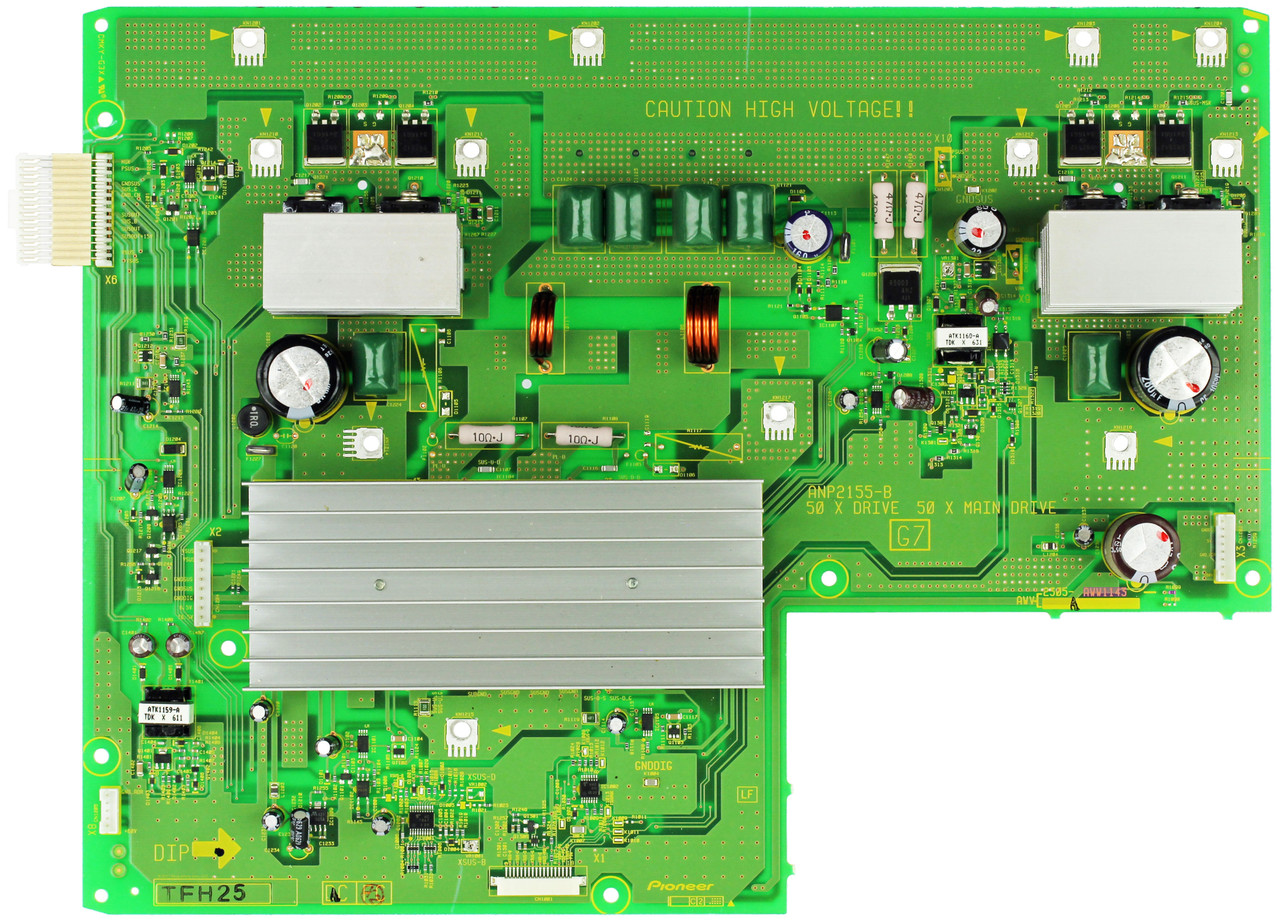

Pioneer AWW1143 (ANP2155-B, AWV2305) X-Main Board

SKU:
sj-AWW1143
Was
$25.04
(You save $9.05)
$15.99
Was
$25.04
(You save $9.05)
$15.99
180-Day Warranty
Ships same business day if ordered before 4pm CT!
We highly recommend matching your part number. Learn more
------


Known Models

BrandModelsVersions
PIONEERPDP-5016HD
PDP-5070HD
PDP-5070PU
PDP-5071PU
PDP-507XD
PRO-507PU
Part Number:
AWW1143
Warranty:
180-Day Warranty
Board Number:
ANP2155-B| AWV2305
Harmonized Code:
8529.90.06.00
Manufacturer Part Number 1:
Pioneer AWV2305
Notes:
ShopJimmy recommends ordering by part number whenever possible. Often times there are TV models that use more than one set of parts and/or panels.
Part Type:
X-Sustain
TV Sizes:
50
Models:
PDP-5016HD
Models:
PDP-5070HD
Models:
PDP-5070PU
Models:
PDP-5071PU
Models:
PDP-507XD
Models:
PRO-507PU
Brands:
pioneer

Videos

What is an X-sustain board?

The X-sustain board is found in plasma TVs and drives all of the X-axis video signals to your TV screen and also discharges the video signal.

Which symptoms does an X-sustain board fix in a TV?

•  If your picture looks like images are blurring together or overlapping, then the Xsustain board could be bad.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace an X-sustain board?

While replacing the X-sustain board is pretty easy, you’ll want to be mindful not to tear the flat ribbon cables when connecting/disconnecting the board.
