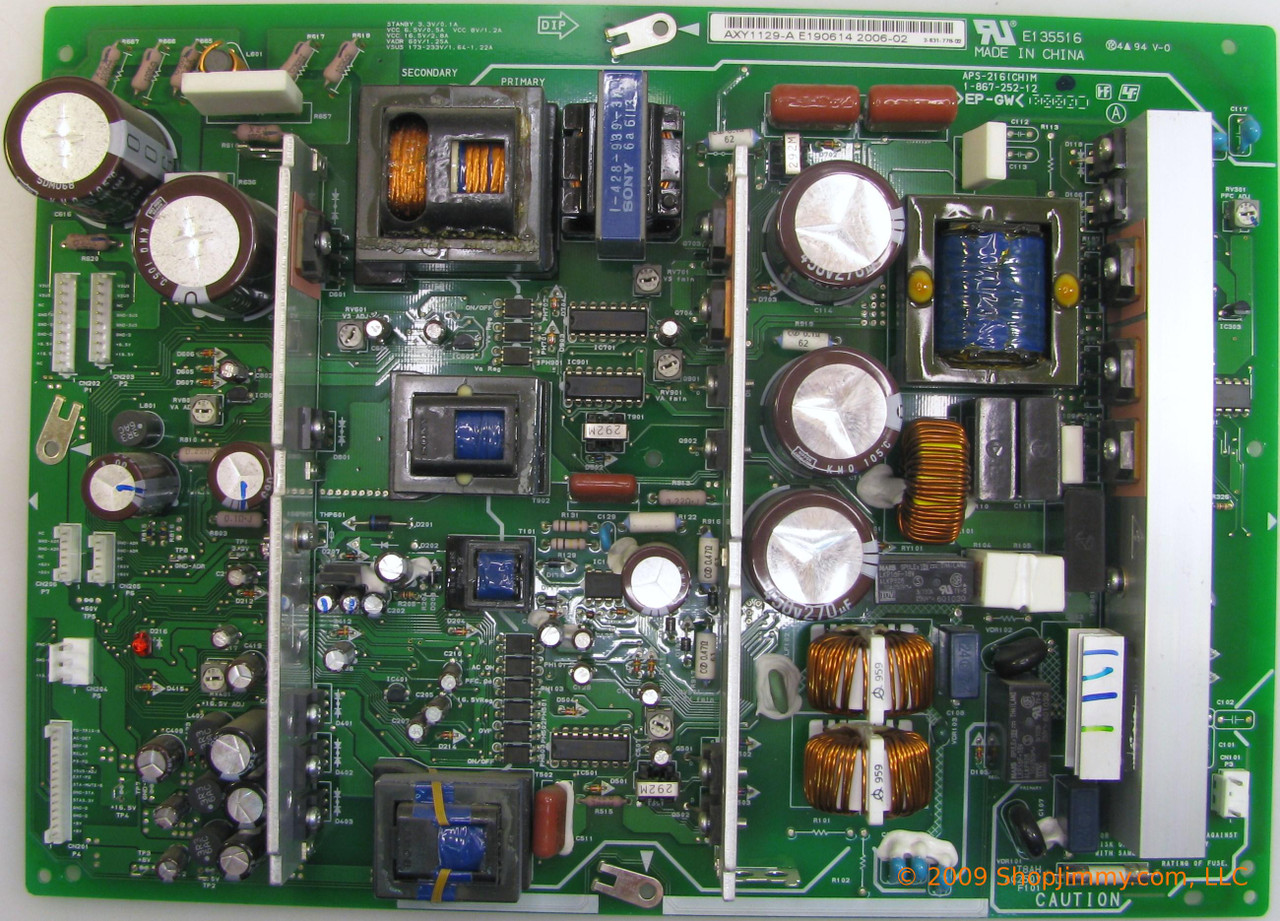

Pioneer AXY1129 (APS-216 (CH) M, 1-867-252-12) Power Supply
Known Models
| Brand | Models | Versions |
|---|---|---|
| Pioneer | PDP-436PE | |
| PDP-436PU | ||
| PDP-506PE | ||
| PDP-506PU | ||
| PRO-436PU | ||
| PRO-506PU |
| Brand | Models | Versions |
|---|---|---|
| Pioneer | PDP-436PE | |
| PDP-436PU | ||
| PDP-506PE | ||
| PDP-506PU | ||
| PRO-436PU | ||
| PRO-506PU |
How identify the CORRECT part number on you power supply board...
How to Locate the part number for your Pioneer TV Repair & Bad...
Your TV’s power supply board takes the AC voltage from your outlet and converts it to various DC voltages needed to power everything in your TV.
• If your TV doesn’t turn on, it could be the power supply board.
• If you see very dim video or no video on the screen, but you know your TV has power and is on, then the power supply could be bad.
• If your TV turns on and then shuts off quickly, it could be your power supply board.
*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.
It's easy! Once you match the part number on your power supply board with the part number listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the board.
