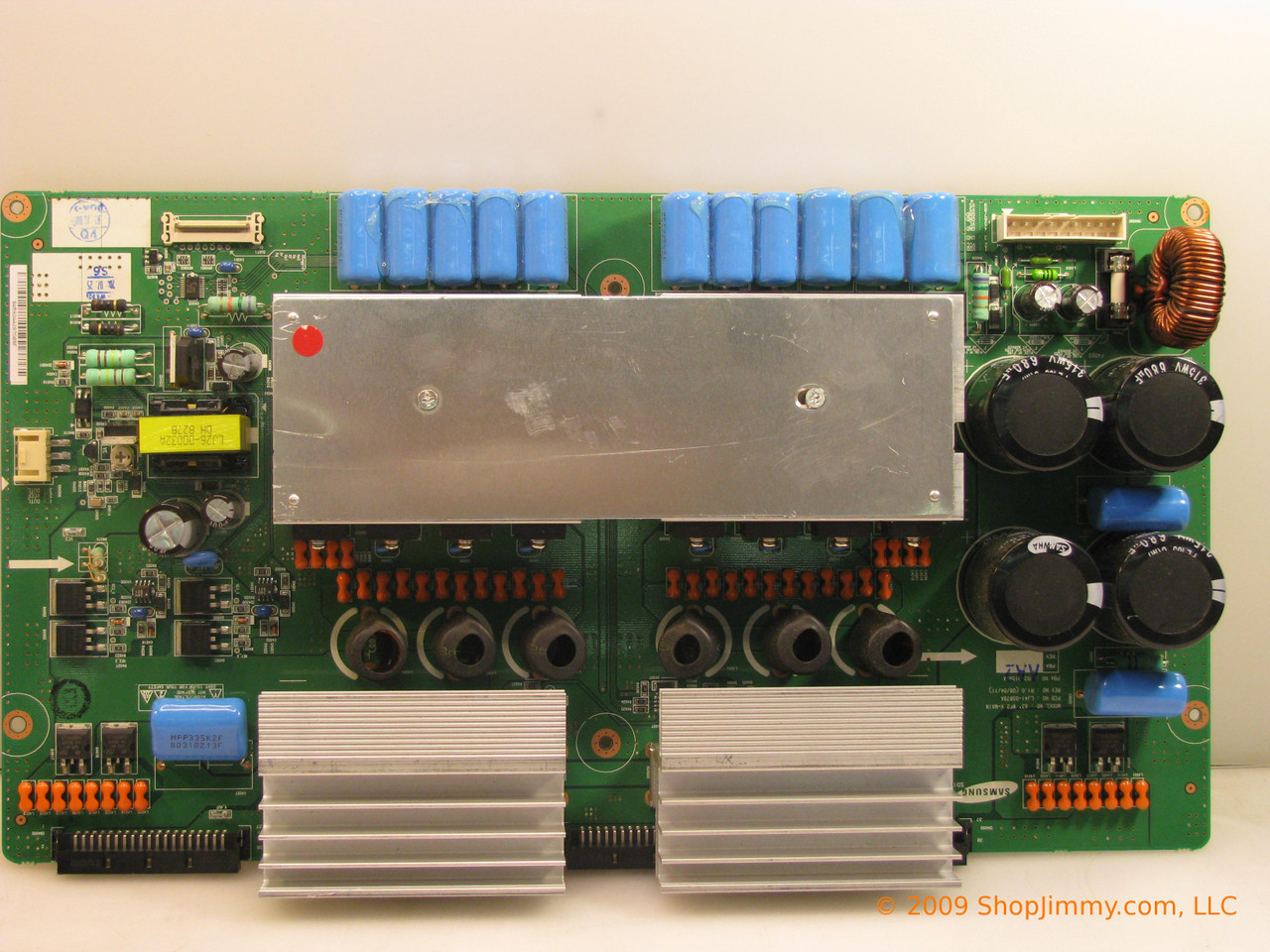

Samsung BN96-08452A (LJ92-01592A) X-Main Board

SKU:
sj-BN96-08452A
Was
$90.94
(You save $20.95)
$69.99
Was
$90.94
(You save $20.95)
$69.99
180-Day Warranty
We highly recommend matching your part number. Learn more
LJ92-01592A


Known Models

BrandModelsVersions
SAMSUNGPN63A650T1FXZA
PN63A650T1FXZC0001,SY01
PN63A760T1FXZA
PN63A760T1FXZC0001
Part Number:
BN96-08452A
Warranty:
180-Day Warranty
Board Manufacturer:
Samsung
Harmonized Code:
8529.90.06.00
Manufacturer Part Number 1:
Samsung BN96-08452A
Notes:
ShopJimmy recommends ordering by part number whenever possible. Often times there are TV models that use more than one set of parts and/or panels.
Part PBA Number:
LJ92-01592A
Part PCB Number:
LJ41-05879A
Part Type:
X-Sustain
Part Usage:
Plasma
TV Panel Manufacturer:
Samsung
TV Sizes:
63
Models:
PN63A650T1FXZA
Models:
PN63A650T1FXZC
Models:
PN63A760T1FXZA
Models:
PN63A760T1FXZC
Panel Number:
S63FH-XB01
Brands:
samsung

Videos

What is an X-sustain board?

The X-sustain board is found in plasma TVs and drives all of the X-axis video signals to your TV screen and also discharges the video signal.

Which symptoms does an X-sustain board fix in a TV?

•  If your picture looks like images are blurring together or overlapping, then the Xsustain board could be bad.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace an X-sustain board?

While replacing the X-sustain board is pretty easy, you’ll want to be mindful not to tear the flat ribbon cables when connecting/disconnecting the board.
