Samsung BN96-16510C / LJ92-01796C X-Main Board Component Repair Kit (See Note)

SKU:
sj-BN96-16510C Repair Kit
$25.38
(You save $5.39)
$19.99
$25.38
(You save $5.39)
$19.99
No Warranty
We highly recommend matching your part number. Learn more

FALL SALE! SAVE 10% ON THIS ITEM TODAY WITH THE CODE SJFALL10

The Samsung BN96-16510C / LJ92-01796C X-Main Board Component Repair Kit includes all necessary components to repair common failures on the X Main Board. Symptoms include: Television will not turn on but relay will click on and off repeatedly | may also hear the Samsung chime.

Known Models

BrandModelsVersions
SAMSUNGPN43D430A3DXZAB104
PN43D440A5DXZA
PN43D450A2DXZA
PN43D490A1DXZA
Part Number:
BN96-16510C Repair Kit
Warranty:
No Warranty
Part Type:
Complete Board Repair Kit
Models:
PN43D430A3DXZA
Models:
PN43D440A5DXZA
Models:
PN43D450A2DXZA
Models:
PN43D490A1DXZA
Additional Information:

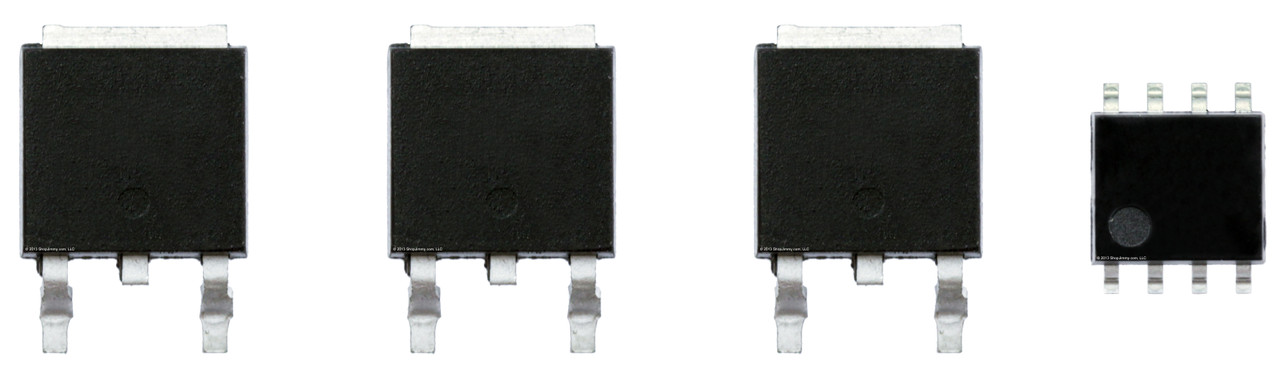

Kit IncludesDescriptionQuantityBoard LocationTransistors3Q4002, Q4004, Q4005 .IC1U401
Brands:
samsung

Videos

What is an X-sustain board?

The X-sustain board is found in plasma TVs and drives all of the X-axis video signals to your TV screen and also discharges the video signal.

Which symptoms does an X-sustain board fix in a TV?

•  If your picture looks like images are blurring together or overlapping, then the Xsustain board could be bad.

*These are helpful tips to get you started and donā€™t represent accurate diagnoses for every TV model and failure. If youā€™re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace an X-sustain board?

While replacing the X-sustain board is pretty easy, youā€™ll want to be mindful not to tear the flat ribbon cables when connecting/disconnecting the board.

What is a board repair kit?

These kits are meant for advanced technicians with soldering experience. Board repair kits will contain common components that are known to fail. By replacing these components, you can revive your board without having to replace it.

Which symptoms does a board repair kit fix in a TV?

•  Since a lot of symptoms could be the result of a failed or defective components, please refer to any symptoms listed on this page or contact your local TV technician.

*These are helpful tips to get you started and donā€™t represent accurate diagnoses for every TV model and failure. If youā€™re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a board repair kit?

Youā€™ll need to have soldering experience to replace components on a board. If you donā€™t have that technical background, we suggest replacing the board instead.
