Samsung UN86TU9010FXZA (BB01) Complete LED TV Repair Parts Kit

SKU:
sj-KIT-UN86TU9010FXZA-K2
$169.99
$169.99
180-Day Warranty
Ships same business day if ordered before 4pm CT!
We highly recommend matching your part number. Learn more

These products also work for this item

 down facing arrow

These products
also work for
this item

right facing arrow
Samsung BN94-16753Z Main Board for UN86TU9010FXZA

Samsung BN94-16753Z Main Board for UN86TU9010FXZA

SKU: sj-BN94-16753Z

$92.15
Ships same business day if ordered before 4pm CT!
6 Available
Samsung BN44-01065E Power Supply / LED Board

Samsung BN44-01065E Power Supply / LED Board

SKU: sj-BN44-01065E

$71.99
Ships same business day if ordered before 4pm CT!
11 Available

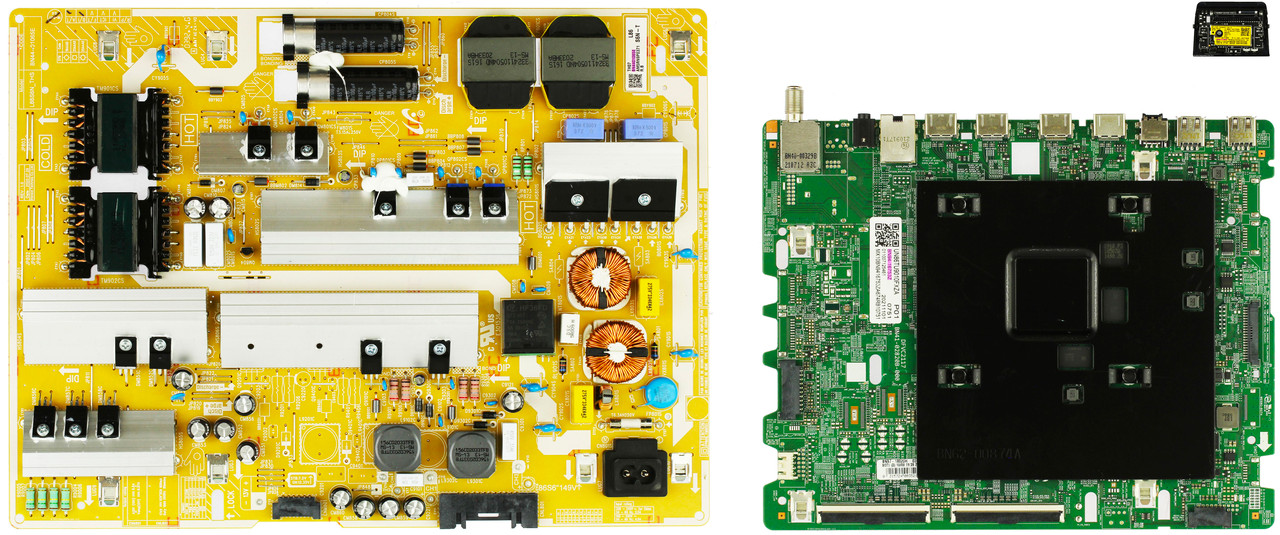

Samsung UN86TU9010FXZA (BB01) Complete LED TV Repair Parts Kit
Samsung BN94-16753Z Main Board
Samsung BN44-01065E Power Supply
Samsung BN59-01342A WiFi

Parts Included

  • Samsung BN59-01342A (WCT730M) Wi-Fi and Bluetooth Wireless Module (sj-BN59-01342A)
  • Samsung BN44-01065E Power Supply / LED Board (sj-BN44-01065E)
  • Samsung BN94-16753Z Main Board for UN86TU9010FXZA (sj-BN94-16753Z)

Known Models

BrandModelsVersions
SAMSUNGUN86TU9010FXZABB01,
Part Number:
KIT-UN86TU9010FXZA-K2
Warranty:
180-Day Warranty
Brands:
samsung
Manufacturer Part Number 1:
Samsung BN94-16753Z
Manufacturer Part Number 2:
Samsung BN44-01065E
Manufacturer Part Number 3:
Samsung BN59-01342A
Models:
UN86TU9010FXZA
Part Type:
Complete Parts Kit
Part Usage:
LED/LCD
Panel Number:
HV860QUB-E1A

What is a TV repair kit?

TV repair kits typically contain every board in your TV (excluding LED strips). If you’re unsure of your diagnosis, you can order this kit and replace all of the boards in your TV.

Which symptoms does a TV repair kit fix in a TV?

•  A TV repair kit can fix most symptoms in your TV, from no power to no video or audio to WiFi issues.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a TV repair kit?

It's easy! Once you match the part numbers on your boards with the part numbers listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the boards.

Make an Offer on this Item!

Please enter your email address and a fair price for this item. We will evaluate your offer within one business day and reply via email. Thanks!

$

Please note that a ShopJimmy Extended Warranty can’t be included in an offer price or added to an accepted/countered offer. Thanks for your understanding.

Need more quantity?

Please add your email and the quantity you need below. While we can’t guarantee that we’ll be able to get our hands on this amount, we’ll do our best and reply to you as soon as we can. Thanks!

We recommend matching the part number on your original part with the part number listed on this page to ensure compatibility.

While matching your model number is a great start, many models use variations of each part and they're not always interchangeable.

We include brief instructions in red text on some listings (also displayed below without the red font). Please look for these instructions to confirm any important info that you'll need to identify on your original part. Additionally, we highlight the part number in our photos.

Please don't hesitate to contact us with any questions. We're here to help!
