Line Rated Current 250 A
[Ue] rated operational voltage 600 V AC
250 V DC
Mounting Mode Unit mount
Poles description 3P
Short-circuit withstand 65 kA 240 V UL 489
35 kA 480 V UL 489
18 kA 600 V UL 489
Breaking capacity code G
Electrical connection Lugs, line
Lugs, load
AWG gauge x AWG 3/0...350 kcmil ( aluminium/copper )
Terminal identifier AL250JD
Magnetic tripping current 3125 A
Height 7.52 in (191.008 mm)
Width 4.12 in (104.65 mm)
Depth 4.5 in (114.3 mm)
Tightening torque 230.1 lbf.in (26 N.m) 0.1…0.3 in² (95…185 mm²) (AWG 3/0...350 kcmil)

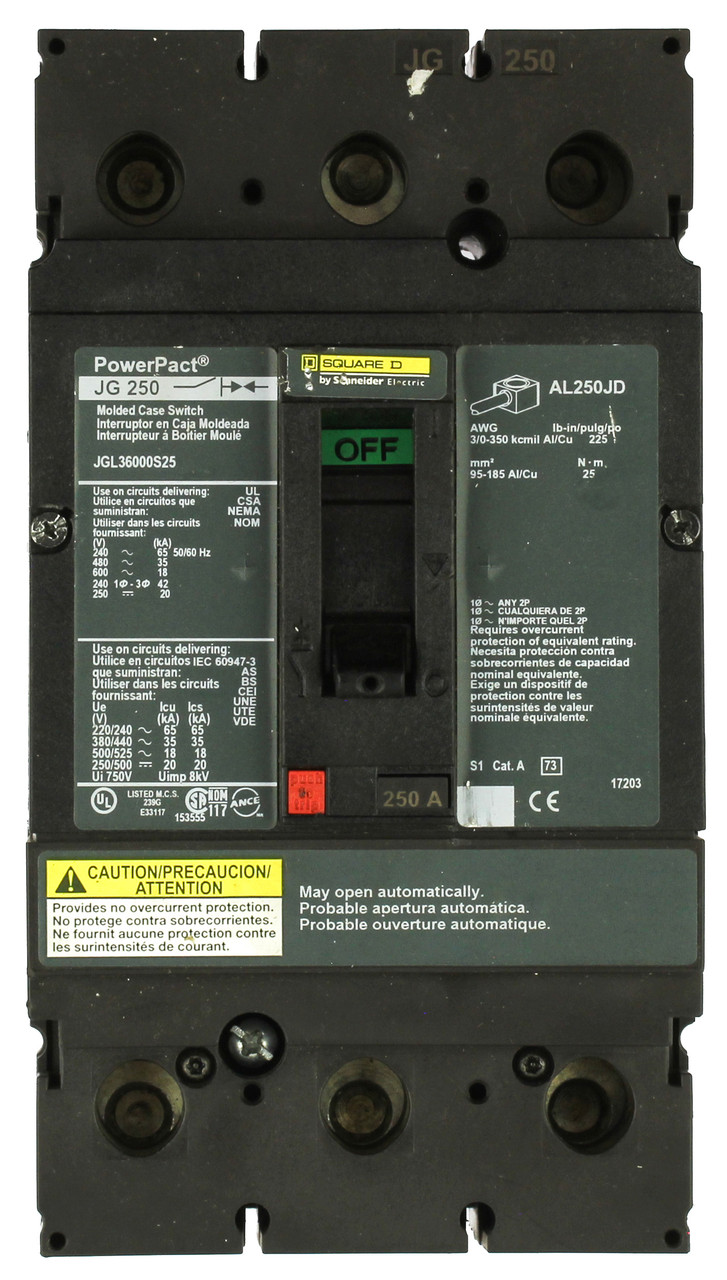

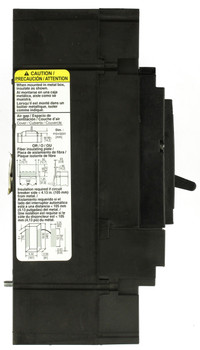

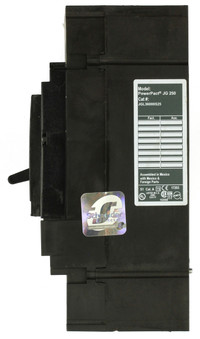

Introducing the Schneider Electric JGL36000S25 Automatic Molded Case Switch, a top-of-the-line component designed for robust electrical applications. Engineered by Schneider Electric, a leader in electrical solutions, this switch is ideal for those who demand reliability and high performance in their electrical systems. Available through ShopJimmy.com, this product ensures peace of mind with its 180-Day Warranty and "Like New" condition.
Key Specifications:
- Line Rated Current: 250 A
- Rated Operational Voltage: 600 V AC / 250 V DC
- Mounting Mode: Unit mount
- Poles Description: 3P
- Short-circuit Withstand: 65 kA at 240 V UL 489, 35 kA at 480 V UL 489, 18 kA at 600 V UL 489
- Breaking Capacity Code: G
- Electrical Connection: Lugs, line and load
- AWG Gauge: AWG 3/0...350 kcmil (aluminium/copper)
- Terminal Identifier: AL250JD
- Magnetic Tripping Current: 3125 A
- Dimensions: Height 7.52 in, Width 4.12 in, Depth 4.5 in
- Tightening Torque: 230.1 lbf.in (26 N.m) for 0.1…0.3 in² (95…185 mm²) (AWG 3/0...350 kcmil)
With a compact design and exceptional durability, the Schneider Electric JGL36000S25 is perfect for large appliance and HVAC applications. Its advanced features and specifications make it a valuable addition to any professional's toolkit. For those looking to enhance their electrical systems, this molded case switch from ShopJimmy.com is an unbeatable choice.
