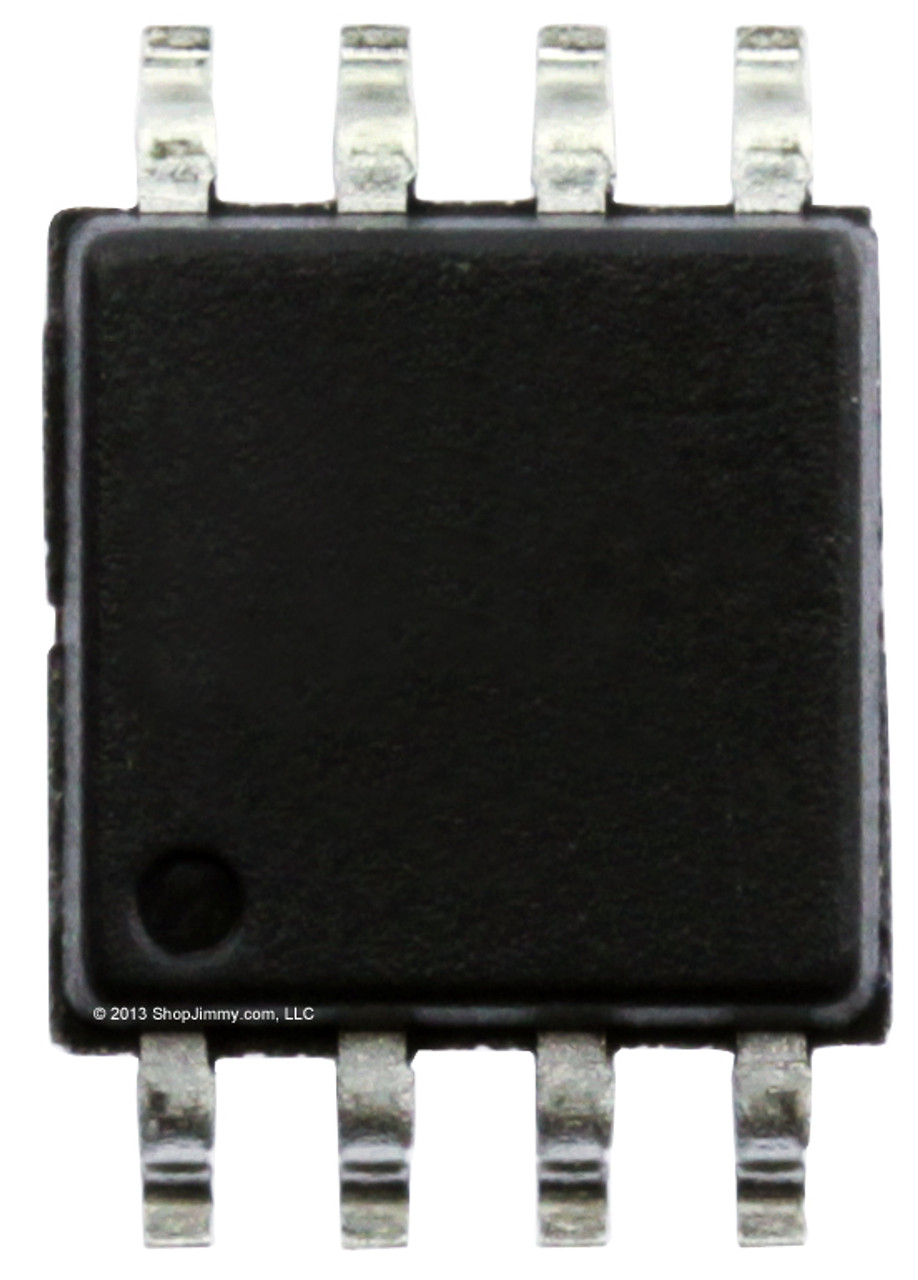

Vizio 756TXECB0TK004 Main Board for P502ui-B1E Loc. U202 EEPROM ONLY

SKU:
sj-EEPROM-756TXECB0TK004
$15.99
$15.99
180-Day Warranty
We highly recommend matching your part number. Learn more
PLEASE NOTE: We have repaired dozens of boards with the no backlight symptom by replacing this IC (found on the back of the board).



The eeprom you receive may appear different from your original but it is a compatible replacement. All sales are FINAL and NO RETURNS will be accepted.




IMPORTANT:

These main boards can have multiple failures, in addition to the EEPROM.

If EEPROM replacement does not repair your board, there are likely additional problems.



Symptoms EEPROM replacement MAY fix:

- TV turns on but there is no backlight

Known Models

BrandModelsVersions
VIZIOP502UI-B1E
Part Number:
EEPROM-756TXECB0TK004
Warranty:
180-Day Warranty
Part Type:
Integrated Circuit
TV Panel Manufacturer:
TPV
Models:
P502UI-B1E
Brands:
vizio
Panel Number:
TPT500DK-QS1 REV:SC1E

Videos

What is an IC?

IC stands for “integrated circuit” and it’s a set of electronic circuits on one small, flat piece (or “chip”) of semiconductor material, usually silicon. Large numbers of tiny MOSFETs (”metal-oxide-semiconductor field-effect transistors) integrate into the small chip.

Which symptoms does an IC fix in a TV?

•  Since a lot of symptoms could be the result of a failed or defective IC, please refer to any symptoms listed on this page or contact your local TV technician.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace an IC?

You’ll need to have soldering experience to replace an IC on a board. If you don’t have that technical background, we suggest replacing the board instead.
