Vizio M75Q6-J03 (LFTVJ5KX Serial) Complete LED TV Repair Parts Kit

SKU:
sj-KIT-M75Q6-J03-K1
$122.39
$122.39
180-Day Warranty
Ships same business day if ordered before 4pm CT!
We highly recommend matching your part number. Learn more

These products also work for this item

 down facing arrow

These products
also work for
this item

right facing arrow
Vizio 167009545A BG000N700 T-Con Board

Vizio 167009545A BG000N700 T-Con Board

SKU: sj-167009545A

$17.99
Ships same business day if ordered before 4pm CT!
22 Available
Compatible with TVs with serial numbers beginning with LFTVJ5KX and others. Please match the boards shown to the originals in your TV before ordering.

Vizio Y8389654S Main Board
Vizio 09-75CAR1A0-00 Power Supply
Vizio 167009545A BG000N700 ZBZZ T-Con

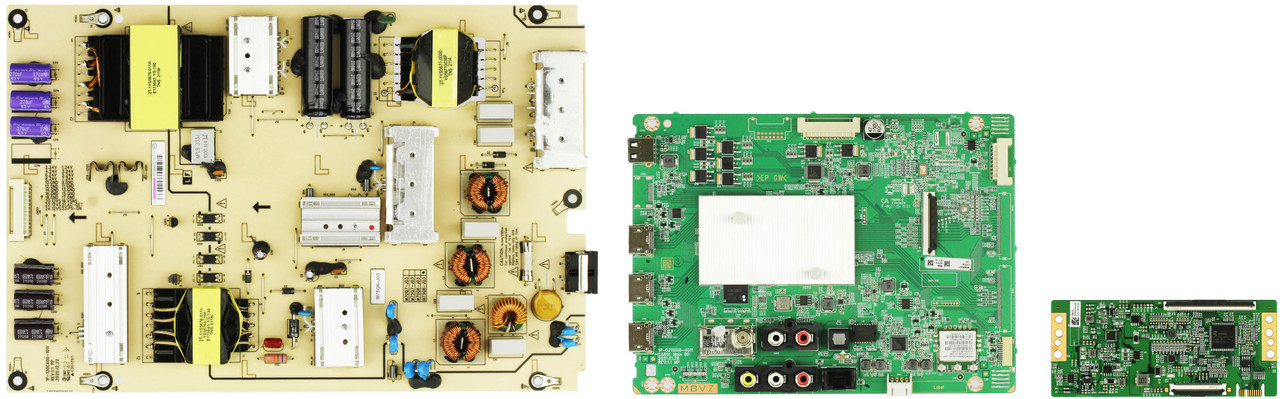

Parts Included

  • Vizio 09-75CAR1A0-00 Power Supply / LED Board M75Q6-J03 (sj-09-75CAR1A0-00)
  • Vizio Y8389654S Main Board for M75Q6-J03 (LFTVJ5KX Serial) (sj-Y8389654S)
  • Vizio 167009545A BG000N700 T-Con Board (sj-167009545A)

Known Models

BrandModelsVersions
VIZIOM75Q6-J03LFTVJ5KX,,LFTVJ5NY
V755-J04LBNFE5NY
Part Number:
KIT-M75Q6-J03-K1
Warranty:
180-Day Warranty
Brands:
vizio
Manufacturer Part Number 1:
Vizio Y8389654S
Manufacturer Part Number 2:
Vizio 09-75CAR1A0-00|Vizio 167009545A|Vizio BG000N700|Vizio ZBZZ
Models:
M75Q6-J03
Part Type:
Complete Parts Kit
Part Usage:
LED/LCD
Models:
V755-J04
Panel Number:
JR745R3HA2Y

What is a TV repair kit?

TV repair kits typically contain every board in your TV (excluding LED strips). If you’re unsure of your diagnosis, you can order this kit and replace all of the boards in your TV.

Which symptoms does a TV repair kit fix in a TV?

•  A TV repair kit can fix most symptoms in your TV, from no power to no video or audio to WiFi issues.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a TV repair kit?

It's easy! Once you match the part numbers on your boards with the part numbers listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the boards.
