Vizio M801d-A3 (LFTROYAP / LFTROYCQ) Complete TV Repair Parts Kit -Version 1

SKU:
sj-KIT-M801d-A3-K1
Was
$159.95
(You save $55.96)
$103.99
Was
$159.95
(You save $55.96)
$103.99
180-Day Warranty
We highly recommend matching your part number. Learn more

These products also work for this item

 down facing arrow

These products
also work for
this item

right facing arrow
For TVs with serial number beginning with LFTROYAP or LFTROYCQ.

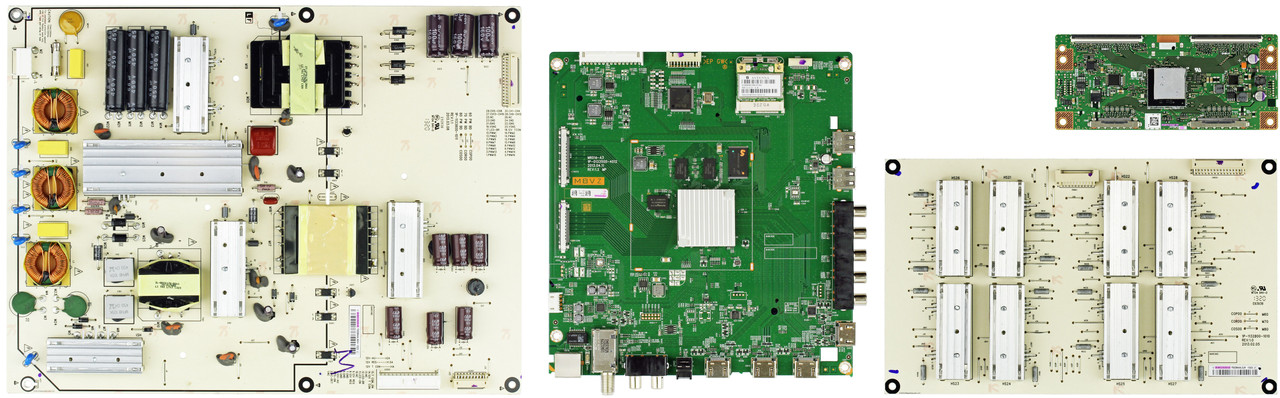

Parts Included

  • Vizio Y8386062S (01-60C0P001-00) Main Board for M801D-A3 (sj-Y8386062S)
  • Vizio 09-80COS000-00 Power Supply Unit (sj-09-80COS000-00)
  • Vizio 05-80COS000-00 (1P-1132800-1010) LED Driver (sj-05-80COS000-00)
  • Vizio RUNTK5391TPZZ T-Con Board for M801d-A3 M801D-A3R (sj-RUNTK5391TPZZ)

Known Models

BrandModelsVersions
VIZIOM801D-A3LFTROYAP, LFTROYCQ
Part Number:
KIT-M801d-A3-K1
Warranty:
180-Day Warranty
Manufacturer Part Number 1:
Vizio Y8386062S
Manufacturer Part Number 2:
Vizio 09-80COS000-00
Manufacturer Part Number 3:
Vizio RUNTK5391TPZZ
Part Type:
Complete Parts Kit
Part Usage:
LED/LCD
TV Panel Manufacturer:
Sharp
Brands:
vizio
Models:
M801D-A3
Panel Number:
JE800D3LA8N

What is a TV repair kit?

TV repair kits typically contain every board in your TV (excluding LED strips). If you’re unsure of your diagnosis, you can order this kit and replace all of the boards in your TV.

Which symptoms does a TV repair kit fix in a TV?

•  A TV repair kit can fix most symptoms in your TV, from no power to no video or audio to WiFi issues.

*These are helpful tips to get you started and don’t represent accurate diagnoses for every TV model and failure. If you’re unsure of your diagnosis, we recommend checking out our YouTube channel or reaching out to a local TV technician for assistance.

How easy is it to replace a TV repair kit?

It's easy! Once you match the part numbers on your boards with the part numbers listed on this page to confirm compatibility, you’ll just need a screwdriver and the ability to remove the back of your TV and replace the boards.

Make an Offer on this Item!

Please enter your email address and a fair price for this item. We will evaluate your offer within one business day and reply via email. Thanks!

$

Please note that a ShopJimmy Extended Warranty can’t be included in an offer price or added to an accepted/countered offer. Thanks for your understanding.

Need more quantity?

Please add your email and the quantity you need below. While we can’t guarantee that we’ll be able to get our hands on this amount, we’ll do our best and reply to you as soon as we can. Thanks!

We recommend matching the part number on your original part with the part number listed on this page to ensure compatibility.

While matching your model number is a great start, many models use variations of each part and they're not always interchangeable.

We include brief instructions in red text on some listings (also displayed below without the red font). Please look for these instructions to confirm any important info that you'll need to identify on your original part. Additionally, we highlight the part number in our photos.

Please don't hesitate to contact us with any questions. We're here to help!

For TVs with serial number beginning with LFTROYAP or LFTROYCQ.


Parts Included

  • Vizio Y8386062S (01-60C0P001-00) Main Board for M801D-A3 (sj-Y8386062S)
  • Vizio 09-80COS000-00 Power Supply Unit (sj-09-80COS000-00)
  • Vizio 05-80COS000-00 (1P-1132800-1010) LED Driver (sj-05-80COS000-00)
  • Vizio RUNTK5391TPZZ T-Con Board for M801d-A3 M801D-A3R (sj-RUNTK5391TPZZ)

Known Models

BrandModelsVersions
VIZIOM801D-A3LFTROYAP, LFTROYCQ
